Designed for Field Applications - MS 0257

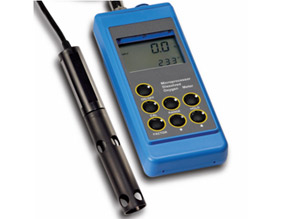

Rugged DO Meter with Extended Range MS 0257 is a water-resistant, microprocessorbased, Dissolved Oxygen Meters with automatic calibration and temperature compensation (ATC). D.O. measurements can be displayed in parts per million (ppm=mg/L) or in % saturation. The temperature range is indicated in Celsius from 0 to 50°C with 0.1 resolution. The MS 0257 also allows manual compensation of altitude and salinity values. The polarographic probe, supplied with the instrument is provided with a protective cover for the membrane. A HOLD button allows the user to freeze the reading on the LCD. MS 0257 can be powered with batteries (with low battery indicator) or through a 12 Vdc adapter.
• Extended altitude compensation
• Extended salinity compensation
• Designed for the field
SPECIFICATION :
Range:
O2:- 0.00 to 45.00 mg/L
% Saturation O2:- 0.0 to 300.0%,
Temperature:- 0.0 to 50.0°C
(4) 1.5V AA batteries / approx. 200 hours of continuous use; auto-off
after 4 hrs of inactivity; or input for 12 Vdc power adapter
Environment
0 to 50°C (32 to 122°F); RH max 100%
Dimensions
196 x 80 x 60 mm (7.7 x 3.1 x 2.4”)
Weight
500 g (1.1 lbs.)
Protection
MS 87518/4F D.O. probe isspecially designed for fieldapplications, where protectionof the membrane frommechanical stress is required.
Ordering Information
MS 0257-04 is supplied complete with MS 87518/4F probe with 4 m (13') cable andprotective sleeve, 2 spare membranes, MS 9263S electrolyte solution (30 mL), batteries, hardcarrying case and instructions.
