Butterfly Valve Series Mic 300

Manufacturer, Exporter, Wholesaler and Supplier of Automation and Instrumentation Products such as Butterfly Valve Series Mic 300 and our setup is situated in Pune, Maharashtra, India.

INTRODUCTION

Butterfly Valve design is the most common type of rotary valve and provides low weight to Cv Ratio Combined with simplicity of design and comparatively low cost. It is simple device to control or block the Flow, a single vane or wafer disc pivots in the valve Body and find wide application for throttling or two Position control in the chemical, paper & pulp, sugar Industries, cooling water circulation, water treatment Plants, compressed air, gas plant, flue gas desulphurization plants etc.

Butterfly Valves have been around industry for decades,performing well defined tasks and are Economic alternative to Gate valve, Ball valve, Plug valve etc.
SPECIFICATION :
DESIGN
 Wafer
TYPE Soft Seated Offset- Series MIC 341
Metal to Metal- Series 351
Sleeved- Series 361
SIZE 50 to 900 mm (2" to 36")
RATING 150#
FLOW Characteristic. Throttling, On-Off.
MATERIAL Body Cast Iron, Carbon Steel, Stainless Steel etc.
Vane Carbon Steel, Stainless Steel
Body Sleeve Neoprene, Nitrile, Teflon, EPDM, Silicon, Butyl,
Viton etc.
Soft Seat  Teflon.
Gland Packing PTFE V Rings upto 180° C
Grafoil upto 400° C.
ACTUATOR FORM Diaphragm, Rotary, Electric.
ACTUATOR TYPE Scotch
DIAPHRAGM Nitrile / Neoprene.
SPRING RANGE 3 – 15 Psig (0.2 – 1.0 Kg/cm²)
6 – 30 Psig (0.4 – 2.0 Kg/cm²)
AIR SUPPLY 20 – 35 Psig (1.4 – 2.5 Kg/cm²)
AIR CONNECTION 1/ 4" or 1/ 2" NPT
ACCESSORIES OPTIONAL Valve Positioner – Pneumatic Electro
Pneumatic, Smart, Airset, Solenoid Valve, Air Lock, Volume Booster
Limit Switches- MS/Proximity with Dome Indicator. Top or Side
Mounted Handwheel etc.


BUTTERFLY VALVE SOFT SEATED
DESIGN SERIES MIC-341

 BUTTERFLY VALVE METAL TO METALSERIES MIC 351 BUTTERFLY VALVE SLEEVED DESIGN
SERIES MIC 361
butterfly-valve-soft-seated-design-series-mic-341 butterfly-valve-metal-to-metal-series-mic-351 butterfly-valve-sleeved-design-series-mic-361

request




DESIGN FEATURES :

  • Compact & simple design, low cost and maintenance free.
  • Very high Cv to body size ratio.
  • Reliable smooth operation and flow control with assured product quality.
  • Bubble tight shut off, leakage Class – VI.
  • Rangeability of 33:1 in the control range.
  • Flow characteristic throttling for modulating duty.
  • Choice of Replaceable Linear/Moulded Lining.

QUALITY AND PERFORMANCE GUARANTEE :

  • Produced with Quality Systems accredited to ISO 9001: 2008 by Bureau Veritas.
  • Full material certification available for all major component Parts.
  • Full guarantee on design and Performance.
  • All testing are performed to the requirements of ANSI B16.34.

VALVE SIZING CO-EFFICIENT Cv RATING (Series MIC. 351 & 361)

Size (mm)

50

65

80

100

125

150

200

250

300

350

400

450

500

600

750

900

Cv AT
FULL
BORE



60°

68

125

170

275

425

650

1225

1900

2750

3250

4500

5000

7000

11000

16000

24000

90°

136

250

340

550

850

1300

2450

3800

5500

6500

9000

12000

14000

22000

32000

48000



VALVE SIZING CO-EFFICIENT Cv RATING (Series MIC .341)

Size (mm)

50

65

80

100

125

150

200

250

300

350

400

450

500

600

750

900

Cv AT
FULL
BORE

90°

68

125

170

275

425

650

1225

1900

2750

3250

4500

5000

7000

11000

16000

24000





DEGREE OF OPENING Vs FLOW CO-EFFICIENT

degree-of-opening-vs-flow-coefficient

request

TEMPERATURE RATINGS FOR UNLINED BUTTERLFY VALVE
BODY MATERIAL

USEFUL TEMPERATURE RATING
Cast Iron (A – 126 Class B) -25° to 200°C
Steel (Carbon Steel, WCB - 28°C, LCB -45°C) -25° to 400°C
Stainless Steel ( CF8, CF8M ) -25° to 830°C



TEMPERATURE RATING FOR SLEEVED BUTTERFLY VALVES
ELASTOMER

TEMPERATURE LIMITS (°C)

 SERVICE
  LOW LIMIT HIGH LIMIT
Natural Rubber -28 70 Air, Water.
Neoprene -17 80 Air, Water, Freon 12, 114.
Nitrile ( Buna N, -12 80 Freon 11, 12, 13, Air, Water, Alcohols,
Hycar)     Aromatic hydrocarbon.
Hypalon -9 105 Acids, Alkalis.
EDPM -35 120 Acids, Alkalis, Steam.
Butyl -23 150 Acids, Alkalis, Steam, Alcohols.
Viton -6 200 Aromatic, Degresed, High Temp, Air and Gas.
Silicon -60 225 High Temperature Air.

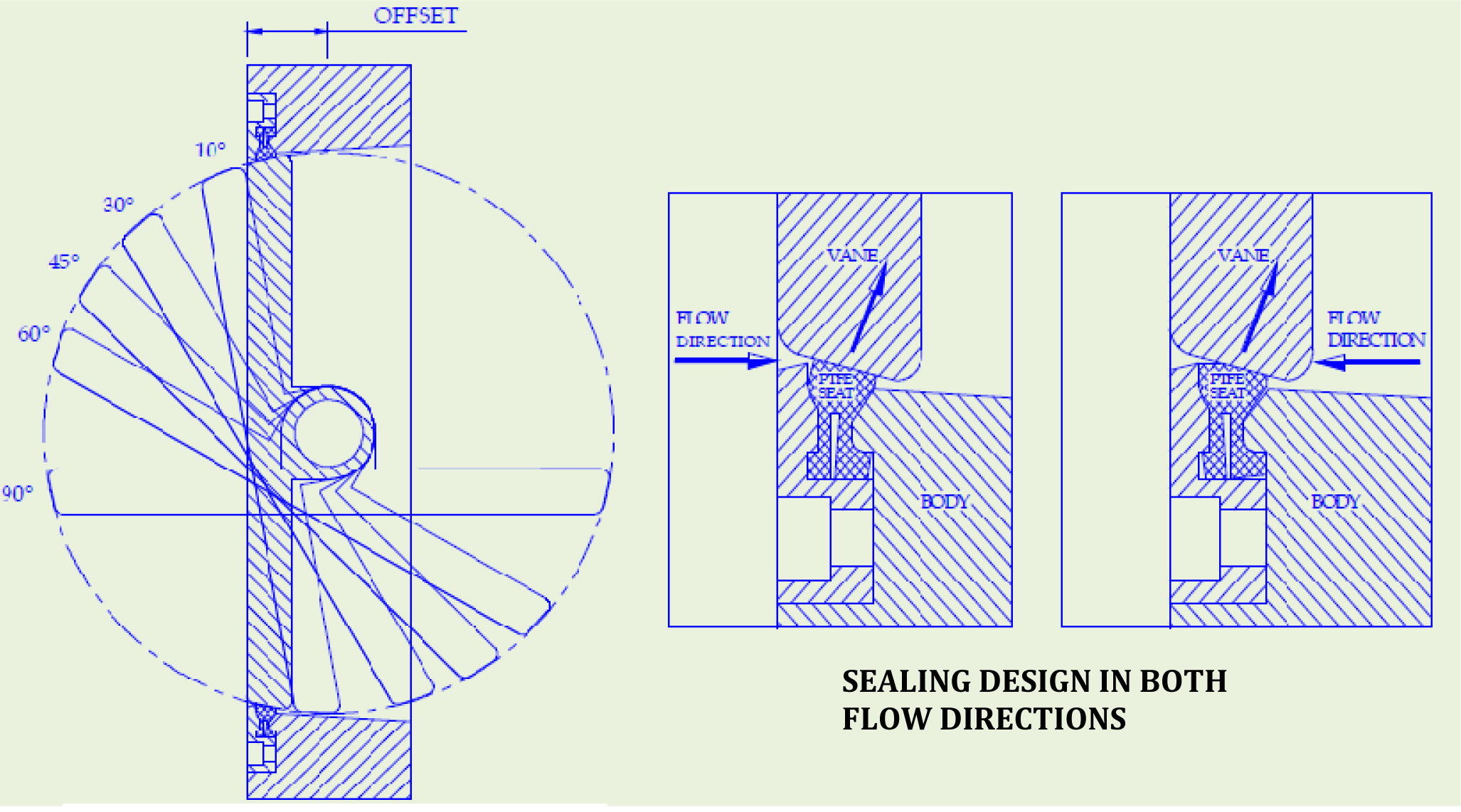

offset-design-indicating-positioning-of-valve-opening
request


VALVE SIZING AND ACTUATOR SELECTION FOR BUTTERFLY VALVE METAL TO METAL- SERIES MIC 351

Torque Required at α°
T α° = A x DP α° + B
Maximum
Allowable
Torque for
304/316
VALVE SIZE
Cv in USGPM
A
B
SHAFT DIA
INCH
MM
60°
90°
0°
60°
90°
IN-LB
INCH
MM
2
2.1/2
3
50
65
80
65

160
130
240
320
0.2
0.3
0.44
1
1.86
3.14
2.75
5.26
9.04
36
36
36
225
225
225
1/2
1/2
1/2
14
14
14
456
100
125
150
280
430
640
560
860
1280
1
1.56
2.63
7.41
4.06
24.13
21.4
41.36
71.63
50
50
65
430
430
745
5/8
5/8
3/4
16
16
20
8
10
12
200
250
300
1200
1850
2700
2400
3700
5400
6.23
9.81
14.4
57.23
109.81
187.4
169.23
329.81
562.4
100
100
100
1764
1764
1764
3/4
3/4
1
20
20
25
14
16
18
350
400
450
3300
4400
6250
6600
8800
12500
27
35.3
52.7
272
405.3
587.7
790
1195.3
1762.7
184
184
232
3438
3438
5508
1
1
1.1/4
25
25
32
20
24
30
36
500
600
750
900
6900
10000
16300
24200
13800
20000
32600
48400
64.4
108
212
300
784.4
1368
2732
4580
2374.4
4158
8262
14000
235
282
396
396
5508
14130
26640
26640
1.1/4
1.1/2
1.1/2
2.1/2
32
38
38
63




SOFT SEATED/ SLEEVED Series MIC – 341 & 361
Torque Required at α°
T α° = A x DP α° + B
Maximum
Allowable
Torque for
304/316
VALVE SIZE
Cv in USGPM
A
B
SHAFT DIA
INCH
MM
60°
90°
0°
60°
90°
0°
10°- 90°
IN-LB
INCH
MM
2
2.1/2
3
50
65
80
65
120
160
130
240
320
0.2
0.3
0.44
1
1.86
3.14
2.75
5.26
9.04
75
75
75
36
36
36
225
225
225
1/2
5/8
5/8
14
16
16
4
5
6
100
125
150
280
430
640
560
860
1280
1
1.88
3.5
7.41
14.38
25
21.4
41.68
72.5
100
120
180
50
65
100
430
745
1764
5/8
5/8
3/4
16
16
20
8
10
12
200
250
300
1200
1850
2700
2400
3700
5400
7.83
14.7
21.6
58.83
114.7
194.6
170.83
334.7
569.6
250
320
320
250
320
320
1764
1764
1764
1
1.1/4
1.1/4
25
32
32
14
16
350
400
3300
4400
6600
8800
27
35.3
272
405.3
790
1195.3
480
480
184
184
3438
3438
1.1/4
1.1/4
32
32



AVAILABLE TORQUE FOR 90° ACTUACTOR (Lbs-in)

Actuator
Actuator Mode
Spring Range Kg/cm2
C/C
Torque
55
MIC 166- 90°
0.2 to 1.0
33
183
95
MIC 106-90°
0.2 to 1.0
33
316
140
MIC 251-90°
0.2 to 1.0
49
691
140
MIC 251-90°
0.2 to 1.0
68.5
966
300
MIC 251-90°
0.2 to 1.0
77.5
2343



AVAILABLE TORQUE FOR 60° ACTUACTOR (Lbs-in)

Actuator
Actuator Mode
Spring Range (Kg/cm2)
C/C
Torque
55
MIC 166- 60°
0.2 to 1.0
45.5
252
95
MIC 106-60°
0.2 to 1.0
45.5
436
140
MIC 251-60°
0.2 to 1.0
68.5
966
140
MIC 251-60°
0.2 to 1.0
96.5
1361
300
MIC 251-60°
0.2 to 1.0
105.5
3189



NOTE: - For spring range other than 0.2 – 1.0 kg/cm² multiply the Torque values by following factors.

Spring Range (Kg/cm2)
Multiple Factor
0.4 to 1.2
2
0.6 to 1.4
3
0.8 to 1.60
4



DIMENSION OF SOFT SEATED BUTTERFLY VALVE (SERIES MIC -341)

dimension-of-soft-seated-buttrfly-valve
request



VALVE
ACTUATOR
F/F
A
B
E
D
H
HA
HA1
HA2
SIZE
MODEL
STD
TMH
SMT
50
MIC 166-90°
43
50
78
260
286
110
432
639
635
65
MIC 166-90°
46
58
91
280
286
110
432
639
635
80
MIC 166-90°
46
64
100
283
286
110
432
639
635
100
MIC 166-90°
47
80
111
298
286
110
432
639
635
150
MIC 166-90°
56
108
133
318
286
110
432
639
635
200
MIC 106-90°
69
135
171
381
371
110
466
673
670
250
MIC 251-90°
80
162
226
441
443
160
657
944
907
300
MIC 251-90°
82
191
241
497
443
160
657
944
907
350
MIC 251-90°
92
207
281
537
443
170
667
954
917
400
MIC 251-90°
102
235
306
567
443
170
667
954
917


DIMENSION OF METAL TO METAL BUTTERFLY VALVE (SERIES MIC -351)

dimension-of-metal-to-metal-butterfly-valve-mic-351

request




VALVE
ACTUATOR
F/F
A
B
E
D
H
HA
HA1
HA2
SIZE
MODEL
STD
TMH
SMT
50
MIC 166-90°
43
50
78
260
286
110
432
639
635
65
MIC 166-90°
46
58
91
280
286
110
432
639
635
80
MIC 166-90°
46
64
100
283
286
110
432
639
635
100
MIC 166-90°
47
80
111
298
286
110
432
639
635
150
MIC 166-90°
56
108
133
318
286
110
432
639
635
200
MIC 106-90°
69
135
171
381
371
110
466
673
670
250
MIC 251-90°
80
162
226
441
443
160
657
944
907
300
MIC 251-90°
82
191
241
497
443
160
657
944
907
350
MIC 251-90°
92
207
281
537
443
170
667
954
917
400
MIC 251-90°
102
235
306
567
443
170
667
954
917




VALVE
ACTUATOR
F/F
A
B
E
D
H
HA
HA1
HA2
SIZE
MODEL
STD
TMH
SMT
50
MIC 166-60°
45
50
90
250
286
110
469
676
672
65
MIC 166-60°
47
56
97
280
286
110
469
676
672
80
MIC 166-60°
47
65
111
280
286
110
469
676
672
100
MIC 166-60°
47
80
113
305
286
110
469
676
672
150
MIC 166-60°
56
108
153
360
286
110
469
673
672
200
MIC 106-60°
60
135
179
415
371
110
503
710
702
250
MIC 106-60°
65
162
206
450
371
110
503
710
702
300
MIC 251-60°
70
191
234
505
443
160
702
989
952
350
MIC 251-60°
89
207
257
560
443
160
702
989
952
400
MIC 251-60°
105
235
286
615
443
160
702
989
952
450
MIC 251-60°
110
270
340
655
443
180
722
1009
972
500
MIC 251G-60°
140
295
445
675
443
180
722
1009
972



DIMENSION OF SLEEVED TYPE BUTTERFLY VALVE (SERIES MIC -361)

dimension-of-solved-type-butterfly-valve-mic-361

request

VALVE
ACTUATOR
F/F
A
B
E
D
H
HA
HA1
HA2
SIZE
MODEL
STD
TMH
SMT
40
MIC 141-90°
33
40
80
259
218
85
328
488
--
50
MIC 141-90°
43
46
80
268
218
85
432
488
--
65
MIC 166-90°
46
54
87
278
286
100
432
639
635
80
MIC 166-90°
46
62
96
285
286
100
432
639
635
100
MIC 166-90°
52
76
110
303
286
100
432
639
635
150
MIC 166-90°
56
105
146
331
286
100
432
639
635
200
MIC 106-90°
60
128
171
380
371
100
466
673
670
250
MIC 251-90°
68
156
210
434
443
160
657
944
907
300
MIC 261-90°
78
184
235
459
443
170
667
954
917
350
MIC 261-90°
78
200
272
500
443
170
667
954
917


VALVE
ACTUATOR
F/F
A
B
E
D
H
HA
HA1
HA2
SIZE
MODEL
STD
TMH
SMT
50
MIC 166-60°
43
46
80
268
286
110
469
676
672
65
MIC 166-60°
46
54
87
278
286
110
469
676
672
80
MIC 166-60°
46
62
96
285
286
110
469
676
672
100
MIC 166-60°
52
76
110
303
286
110
469
676
825
150
MIC 106-60°
56
105
146
331
371
110
503
710
706
200
MIC 251-60°
60
128
171
380
443
160
702
989
952
250
MIC 251-60°
68
156
210
434
443
160
702
989
952
300
MIC 261-60°
78
184
235
459
443
170
722
1009
972
350
MIC 411-60°
78
200
272
500
616
190
768
NA
1073



The Company’s policy is one of continuous product improvement and the right is reserved to modify the specifications contained herein without notice.





pH Sensors   I   PH Electrode   I   Industrial Dip   I   Industrial pH Sensors   I   Sterilizable pH Sensors   I   Online PH Indicators / Controllers / Transmitters   I   pH Meters   I
PH Bench Meter With 0.001 Resolution and Stability Indicator   I   Slim pH Meters   I   Conductivity Sensor   I   Conductivity Sensors   I   Conductivity Sensor - Industrial Pipeline   I   Conductivity Sensor - Industrial Dip   I   Sanitary Conductivity Sensor   I   Conductivity Indicating Controller Cum Transmitter   I   Conductivity Meter   I   Multi-ranging Conductivity, TDS, NaCl, Temperature Meter   I   Multi - Ranging Conductivity Meter   I   Dissolved Oxygen Sensors   IGalvanic-Maintenance Free DO2 Electrode  I   Polarographic DO2 Electrode   I   MSSet DO Sensor   I   DO ( Dissolved Oxygen ) Meter   I   Dissolved Oxygen Meters   I   Table Top Dissolved Oxygen Meters   I   Portable Dissolved Oxygen Meters   I   Ultrasonic Level Transmitters   I   Electromagnetic Flow Meters   I   pH Transmitters   I   On-line Panel Mounted PH Indicator cum Transmitter   I   Online pH Transmitters   I   Oxidation Reduction Potential   I   Oxidation Reduction Potential Sensor (I) – ( ORP Sensors )   I   Oxidation Reduction Potential Sensor – ( ORP Sensors )   I   Online Oxidation Reduction Potential Indicator, Controller and Transmitter   I  Oxidation Reduction Potential Transmitters - ( ORP Transmitters )   I   Ozone Amperometric Sensors   I   Dissolved Chlorine Sensors   I  TDS Indicating Controller   I   Magnetic Flowmeter   I   Dissolved Chlorine Dioxide Sensors   I   Dissolved Oxygen Transmitter - ( DO Transmitter )   I   Conductivity Transmitters MS-CT-211T  II  Temperature And Air Velociy Transmitters DUW 221  II   Clamp On Ultrasonic Flow Meters  II   Process Conductivity / TDS Controllers & Transmitter  II   MS Controller Bsed Conductivity Indicators / Controller  II   Electromagnetic Flow Meters MS FL 0117  II   High Precision Air / Gas Velocity Transmitter  II   Magnetic Float Operaded, Guided Level Switch  II   MS Controller Based Conductivity / TDS  II   MS controller Based PH Indicator / Controller  II   MS Controller Based ORP Indicatorsc / Controller  II   Digital pH Indicator CUM Transmitter  II   MS Controller Based pH Meters MS pH 644  II   Digital Bench Top pH Meters  II   Digital Bench Top TDS / Conductivity Meter  II   MS Controller Based TDS Indicators / Contorller  II   UPVc Electromagnetic Flow Meters MS FL 0117  I   Home   I   About Us   I   Contact Us   I
Enquiry   I   Sitemap

Designed by : MID   Hosted by : GID   Promoted by : PBD
