CPCB / MPCD APPROVED ONLINE EFFLUENT MONITORING SYSTEMS
COD / BOD / TSS / PH / FLOW / SOX / NOX |
| |
| MSset UV254 ONLINE - M series |
| |
MSset UV254 ONLINE ANALYZERS
MSset UV254 Online analyzers offer an affordable and accurate solution for real-time UV254 or UVT monitoring. Benefiting from Split-Sense Pro and patented Ortho-Beam technology, the need for calibration is limited lowering maintenance requirements. Several path length options provide solutions for wastewater to high purity applications.
|
|
|
|
Applications:
• Source water monitoring/protection
• Coagulation optimization
• TOC removal efficiency (Activated carbon)
• Reverse osmosis (RO) removal efficiency
• UV Disinfection performance
• DBP formation potential
• Distribution system contamination event detection
• Smart Water Networks
|
|
| |
Features and Benefits
• Real-time UV254 and UVT organics analysis
• Accurate and reliable data
• Simple to install and easy to operate
• Innovative Custom Calibration feature
• Low maintenance, bypass style design
• 4 line x 20 character backlit LCD display
• Optional automatic chemical cleaning
Dual Feed System
Monitoring two streams is simple and affordable with the dual feed system. The wall mounted cabinet is easy to install with any analyzer, alternating between two streams on timed intervals. The system is invaluable for monitoring organics removal pre and post |
|
| coagulation as well as pre and post granular activated carbon (GAC) for efficiency measures and optimization. |
| |
MSset Clean System
The optional Real Clean systems are the ideal choice to keep maintenance to a minimum and performance at its best. The systems can be programmed to meet the cleaning demands of each site, with the option to recycle 90% of the chemical cleaning fluid - further reducing maintenance. Systems can also be equipped with a pumping component for non-pressurized installations. |
| |
Custom Calibration
MSset innovative custom calibration feature allows the online analyzers to be calibrated without DI water or taking the unit offline. A sample is taken from the drain line of the analyzer and tested with a P200 meter or equivalent for UVT. The UVT value is then entered under the Custom Calibration tab in the menu system and the calibration is automatically updated. No further
calibration is required. |
|
| |
| Models and Measurement Range |
|
| Model |
Path Length |
UVA (abs/cm) |
UVT (%) |
| M2010 |
1 mm |
0-13 |
0-10 |
| M2020 |
2 mm |
0-6.5 |
0-15 |
| M2040 |
4 mm |
0-3.25 |
0-45 |
| M2100 |
10 mm |
0-1.3 |
5-100 |
| M3000 |
10 mm x 20 mm |
0-1 |
15-100 |
| M3500 |
50 mm |
0-0.26 |
55-100 |
| M4000 |
250 mm |
0-0.05 |
89-100 |
|
| TAKE CONTROL, KNOW WHAT’S IN YOUR WATER |
| |
| Technical Specifications |
| |
| Characteristic |
Technical Data |
| Units |
Abs or % |
| Accuracy |
+- 0.5 % FS |
| Resolution |
0.001 UVA or 0.1% UVT* |
| Sampling Time |
10 seconds |
| Calibration |
In-situ zeroing to DI water or custom calibration to known UVT sample |
| Cleaning |
In-situ chemical cleaning or optional automatic chemical cleaning |
| Self-Diagnostics |
Detection and diagnosis of internal system fault |
| Operator Interface |
Five push buttons to control a comprehensive hierarchical menu system |
| Display |
4 line x 20 character backlit LCD with LED alarm indicator |
| Alarms |
Dry contact terminals allow for operator configurable alarms for: high and low UVT/UVA set points, low lamp output, leak detected, system fault, etc. |
| Humidity Control |
Humidity sensor with large plug-in regenerating desiccant system |
| Outputs |
Self-powered 4-20 mA, RS232 serial for PC |
| Wavelength |
253.7 nm |
| Light Source |
Low-pressure mercury UV lamp / UV LED |
| Lamp Life |
2 years |
| Dimensions |
17”H x 14”W x 8”D* |
| Enclosure |
1P66, NEMA 4, wall mountable |
| Flow Rate |
300-1000 mL/min |
| Pressure Rating |
20 PSI* |
| Fluid Connections |
1/4” OD tube push-in fittings |
| Electrical |
24VDC 40W power adapter (accepts 90-250VAC 50/60Hz) |
| Storage Temp. |
-20 to 60°C (-4 to 140°F) |
| Operating Temp. |
0 to 45°C (32 to 113°F) |
| Weight |
22 lbs* |
| Warranty |
2-year limited warranty (Extended care packages available) |
| Technology |
Ortho-Beam and Split-Sense Pro |
| Options |
Dual Feed, Real Clean, Pump Clean, Seawater Upgrade, High Temperature Upgrade, etc. |
|
| |
* Difference in specifications for M4000 model
** Technical Specifications are subject to change without notice. |
| |
| |
| |
| UV BOD/COD SENSOR - PL series |
| |
MSset UV BOD/COD SENSOR
Real Tech’s UV BOD/COD sensors offer the most practical and accurate method for monitoring BOD and COD in real-time. The results are instant, meaning data can be used to make immediate adjustments and improve upstream or downstream processes. Real-time data can also be used for assurance of effluent water quality prior to discharging to the environment or municipal sewer
system. The robust sensor design and complementary optional automatic chemical cleaning system keep maintenance to a minimum while improving performance.
|
|
|
|
Applications:
• Influent/Effluent monitoring for treatment process optimization
• Effluent monitoring for regulatory compliance
• Industrial effluent pollution management
• Municipal sewer control
• Water reuse quality control
and more.....
|
|
| |
Features and Benefits
• Real-time BOD/COD measurement
• No waiting for the laboratory
• Low maintenance
• No complexity, simple to operate
• Easy to install
• Practical and affordable monitoring system
• Reagentless operation
• Various measurement ranges (mg/L)
Low maintenance. Stable output.
MSset innovative Split-Sense Pro technology uses a method of moving the sample from a test position to a reference position, allowing for continuous compensation of lamp and sensor drift. This practical method allows for long term stability in measurements,
|
|
| avoiding the need for frequent calibration. |
| |
Full Control
Operation and control of the Real UV BOD/COD sensor is simple with Real Tech’s “plug and play” controllers. A single sensor or multiple sensors can be connected to one controller, bringing all data to one central location for quick and simple analysis. |
| |
Access and Support
With Real Tech’s optional remote monitoring capabilities, real-time data can be accessed anywhere, anytime allowing our clients to take control immediately. Additionally, this feature allows Real Tech to provide remote support, giving our clients peace of mind and
confidence in their data. |
| |
Optional Automatic Pump and Clean System
The optional Pump Clean systems are the ideal choice to keep maintenance to a minimum and performance at its best. The system provides flow to the sensor for open channel applications and can be programmed to meet the cleaning demands of each site - further reducing maintenance |
| |
Simple. Accurate. Affordable.
Real Tech’s UV BOD/COD sensor uses ultraviolet (UV) and visible (VIS) absorbance technology to simply and accurately measure BOD and/or COD in real-time. |
| |
UV Absorbance Measurement Principle
Organic matter naturally absorbs UV radiation between 200-400 nm. As the BOD or COD increases, the absorbance of light in this distinct wavelength range will also increase. Common interferences with BOD and COD measurements, such as total suspended solids, are compensated for by measuring absorbance at additional reference wavelengths in the visible (VIS) spectrum. |

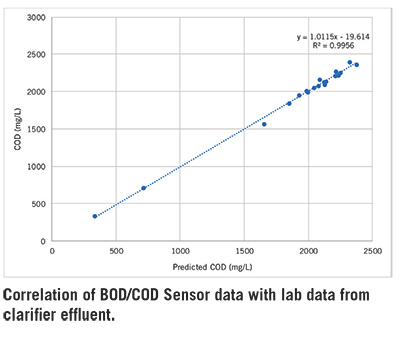

Using UV-VIS absorbance data in combination with laboratory BOD and COD data, a relationship or ‘calibration’ can be established. This calibration is then used by the sensor to report accurate and precise realtime measurements. |
| |
|
| |
TAKE CONTROL, KNOW WHAT’S IN YOUR WATER |
| |
| Models and Measurement Range |
|
| Model |
Path Length |
BOD (mg/L) |
COD (mg/L) |
| PL2020.BOD/COD with Dilution System |
2 mm |
0-120,000 |
0-240,000 |
| PL2010.BOD/COD |
1 mm |
0-1,275 |
0-2,400 |
| PL2020.BOD/COD |
2 mm |
0-640 |
0-1200 |
| PL2040.BOD/COD |
4 mm |
0-320 |
0-600 |
| PL2080.BOD/COD |
8 mm |
0-160 |
0-300 |
| PL3500.BOD/COD |
50 mm |
0-25 |
0-50 |
|
| TAKE CONTROL, KNOW WHAT’S IN YOUR WATER |
| |
| Technical Specifications |
| |
| Characteristic |
Technical Data |
| Units |
mg/L |
| Sampling Time |
1 minute |
| Calibration |
In-situ zeroing to DI water |
| Cleaning |
In-situ chemical cleaning or optional automatic chemical cleaning |
| Self-Diagnostics |
Detection and diagnosis of internal system fault |
| Alarms |
Dry contact terminals allow for operator configurable alarms for: high and low set points, low
lamp output, leak detected, system fault, etc. |
| Humidity Control |
Humidity sensor with large plug-in regenerating desiccant system |
| Wavelengths |
Full scanning between 190-750 nm |
| Light Source |
Deuterium and Tungsten Lamp |
| Lamp Life |
4000 hrs. each |
| Dimensions |
16”H x 20”W x 8”D |
| Enclosure |
1P66, NEMA 4, wall mountable |
| Flow Rate |
300-1000 mL/min |
| Pressure Rating |
20 PSI |
| Fluid Connections |
1/4” OD tube push-in fittings |
| Storage Temp. |
-20 to 60°C (-4 to 140°F) |
| Operating Temp. |
0 to 45°C (32 to 113°F) |
| Weight |
44 lbs |
| Warranty |
2-year limited warranty (Extended care packages available) |
| Technology |
Split-Sense Pro |
| Options |
Dilution System, Dual Feed, Real Clean, Pump Clean, High Temperature Upgrade, etc. |
|
| |
| *Additional models and spec options available, contact Real Tech for more information. |
| |
| |
